ABS HEADRAIL SLOT PLACEMENT
Below are images of the shade slot placements based on control types by widths.
Below applies to Fabric Roman Shades.

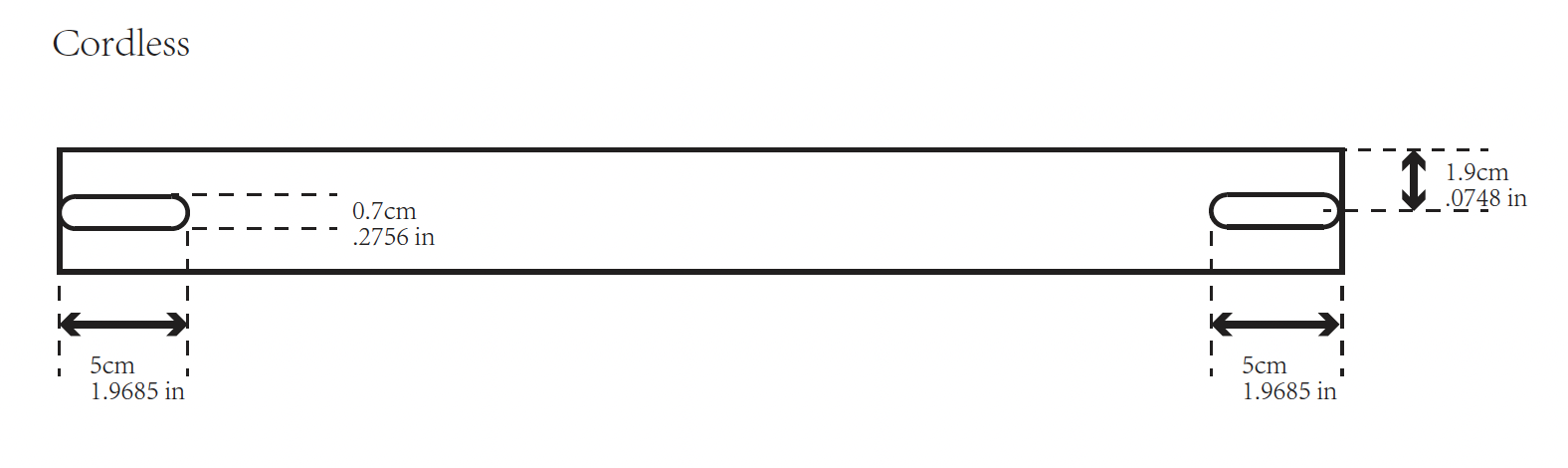

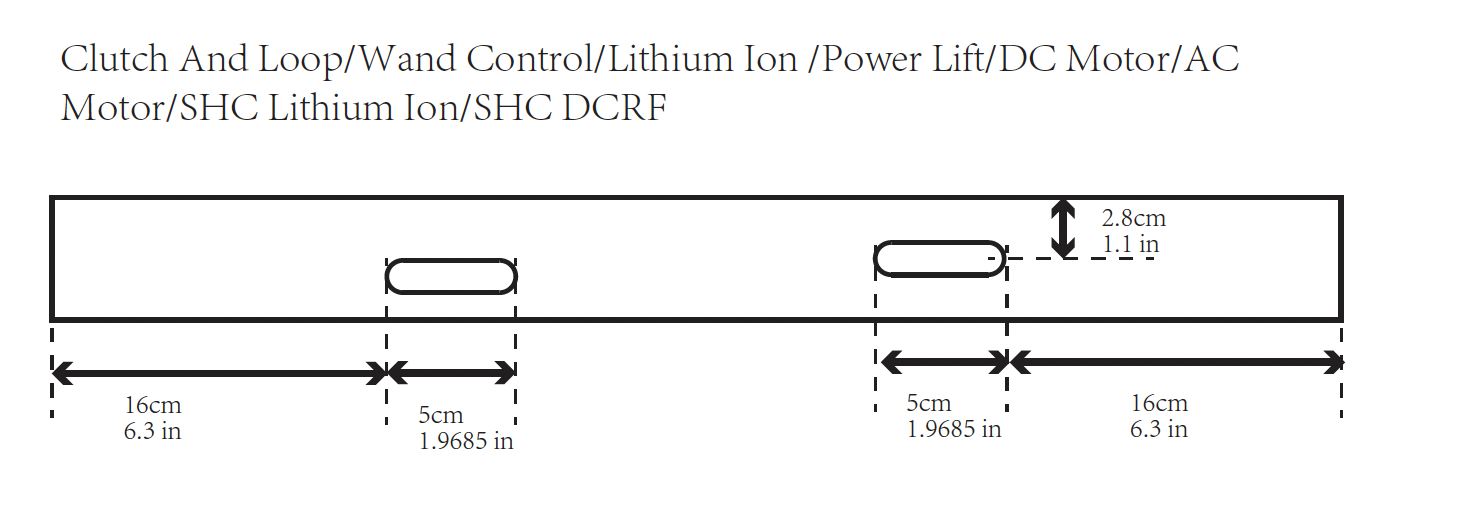

0 < Width <= 100cm (39")
______________________________________________________________________________________________________

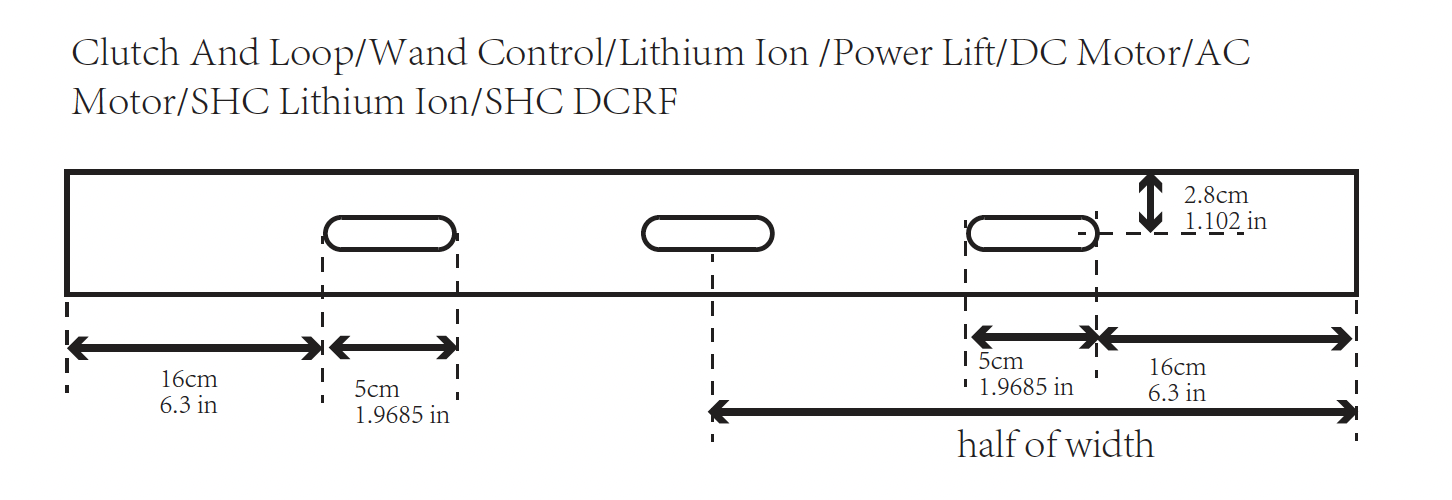

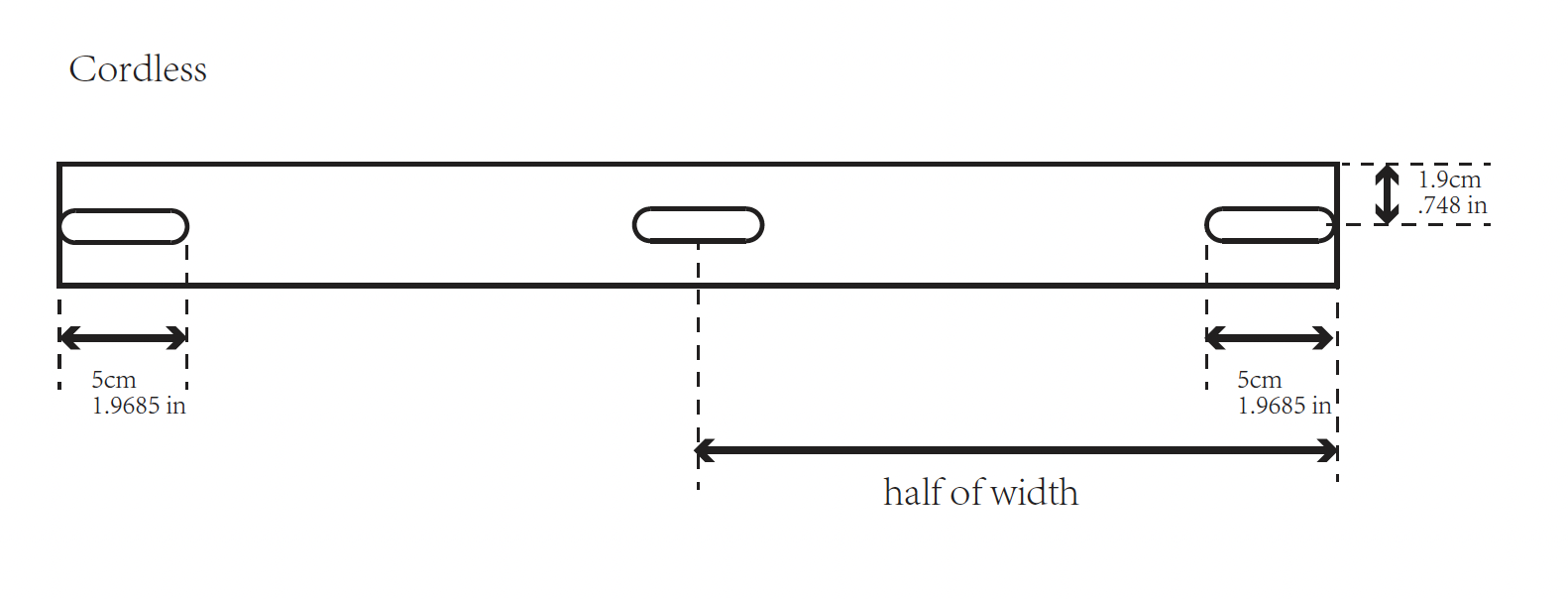

100cm (39") < Width <= 170cm (67")
______________________________________________________________________________________________________

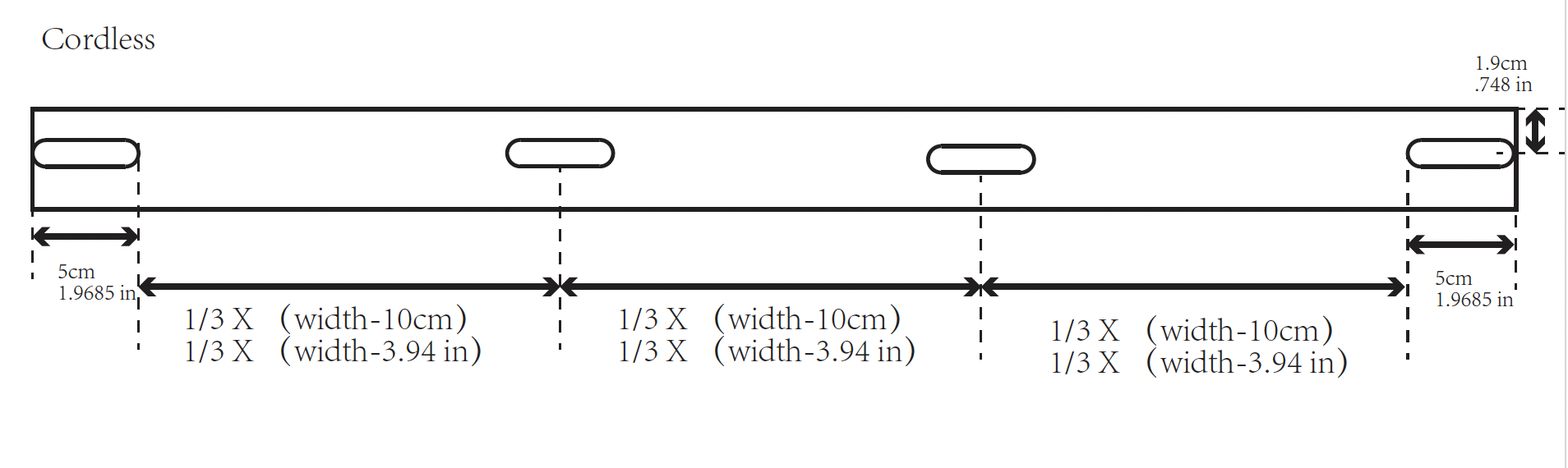

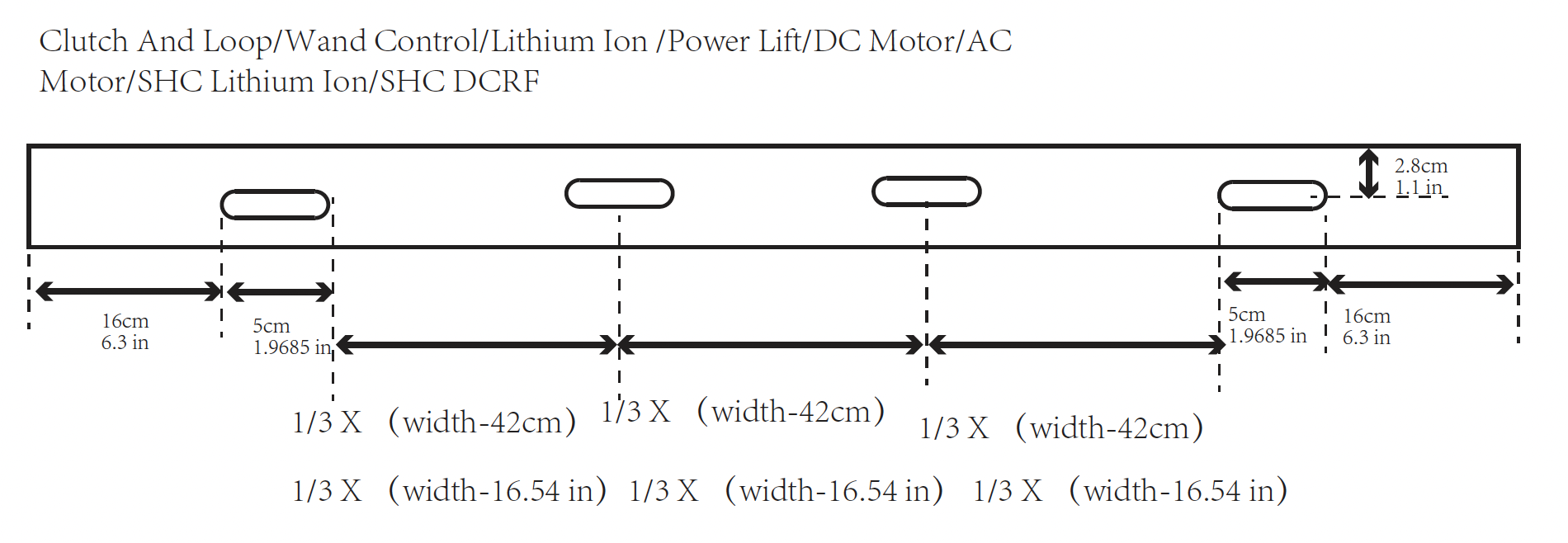

170 cm (67") < Width <= 244 cm (96")
______________________________________________________________________________________________________
