SP Not Catching on Back Panel- FAQ- SP

Modified on Thu, 12 Jun at 9:54 AM

Frequently Asked Sliding Panel Questions:

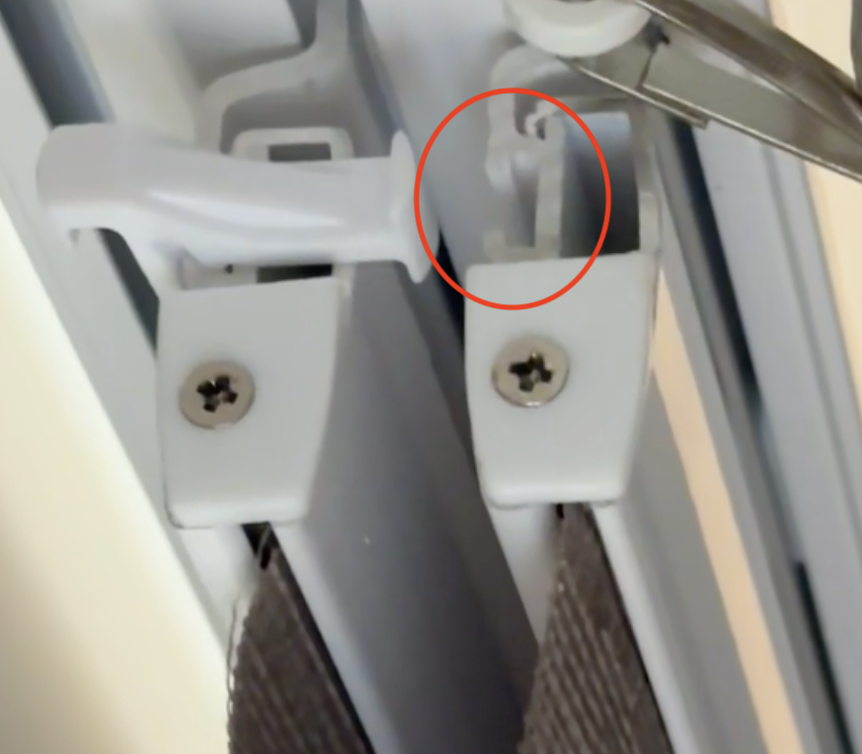

A customer ordered a 3 panel track absolute roller sliding panel. When opened, the front panel is not catching on the back panel. Can we send a part from Ohio?

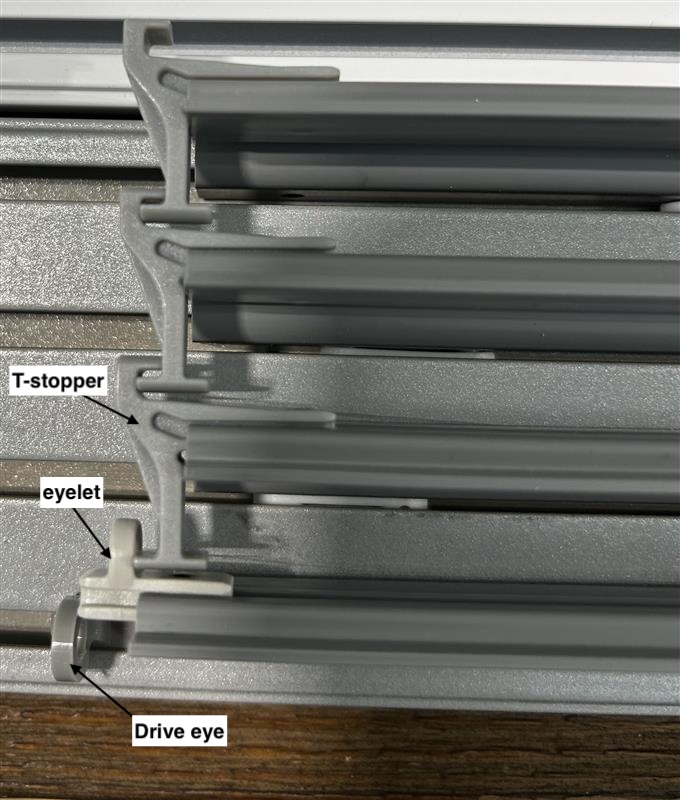

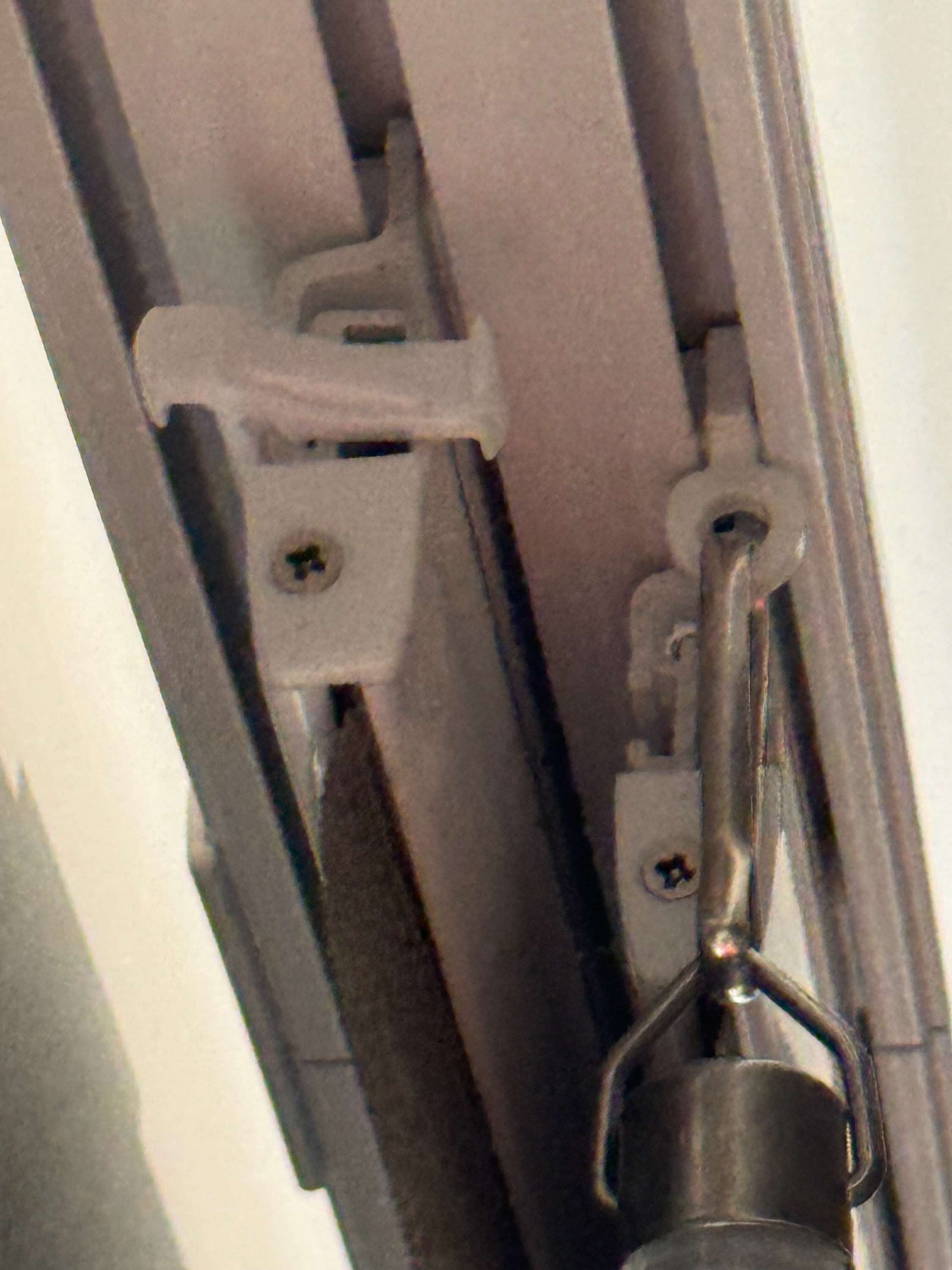

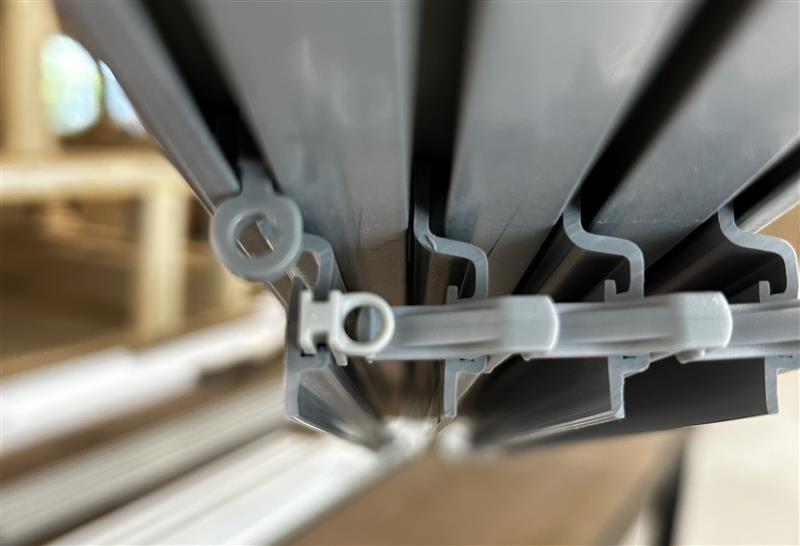

Answer:  They are missing the eyelet - PTC05-1-W (or white) or -S for Silver. We can send that along with a 1.5mm allen key.  The front glider gets an eyelet, it goes in the little notch on the back side of the front glider.

We do not use a T-stopper on the front glider because it would have a piece that juts out in front of the glider/panels. The piece that the wand clips to is the drive eye, installed by UWC as it requires drilling a hole in the glider to install.
