How To Replace Plastic Edge Bar Carrier

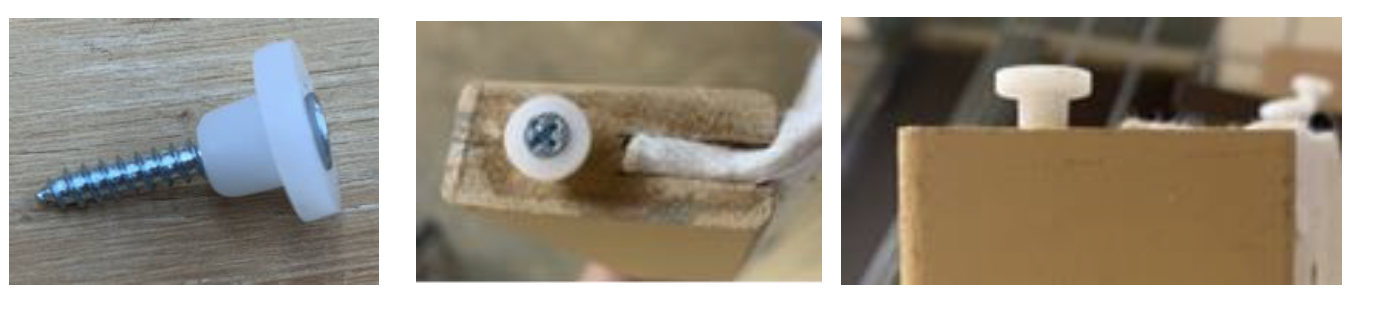

• Carefully remove the installed screw and any remnants of the original plastic carrier roller.

• Insert replacement screw through new plastic roller, so screw head is flush with the top of the roller.

• Pre-drill a new hole for the replacement screw with a 1/8" drill bit on the top of the edge bar. Be sure to position the hole centered on the bar.

• Coat length of screw with super glue

  • Careful not to glue the screw to the roller. The carrier needs to be able to rotate freely in the track.

• Use a hand-held Phillips head screwdriver to carefully re-install the screw (using a drill or impact driver may cause edge bar to crack or the screw to be installed at an angle, making the edge bar hang crooked).
