Exact Lift Pro - How to Replace Tension Gear on Spring End Bracket

NOT YET LAUNCHED - BETA ONLY

How to Replace the Tension Gear on the Bracket:

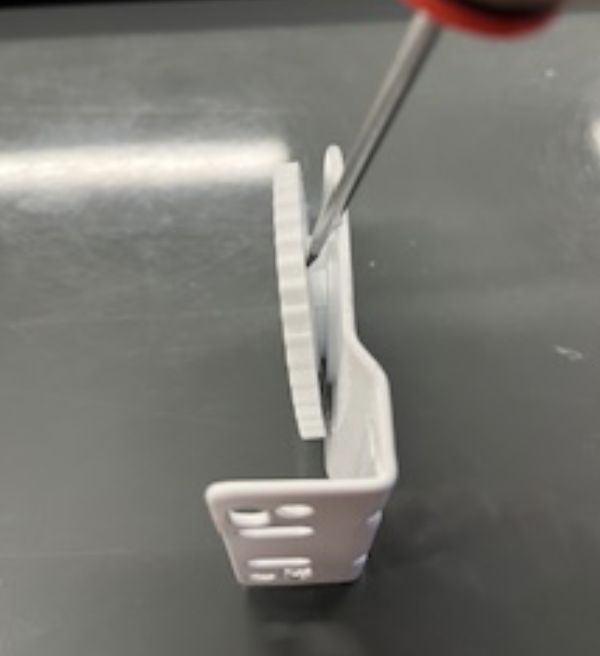

Using a flathead screwdriver, pry the old tension gear from the bracket.

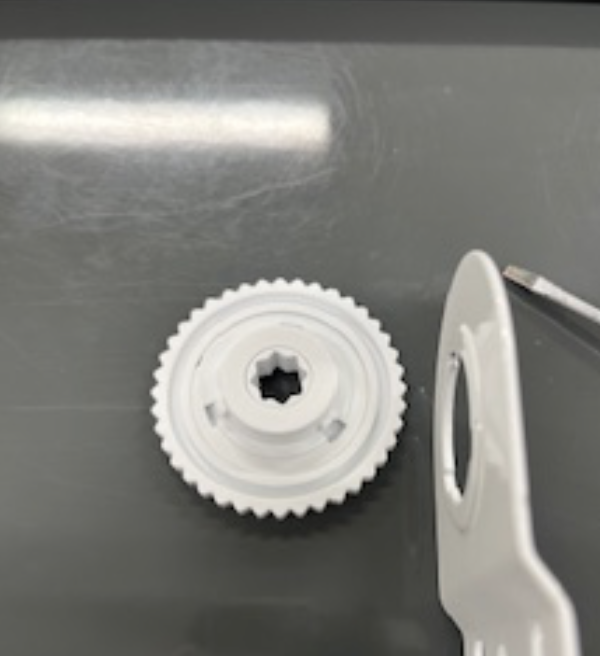

Tension Gear and Bracket Unassembled

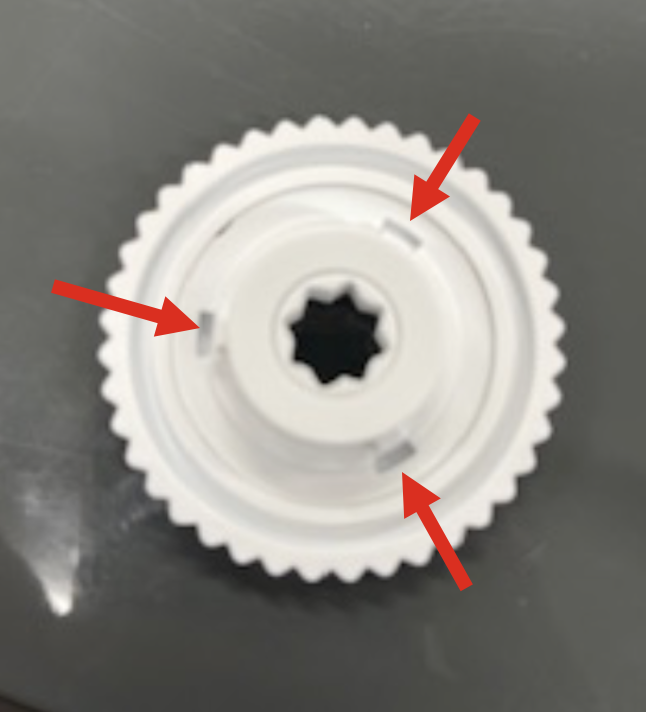

Line the 3 inner tabs on the tension gear

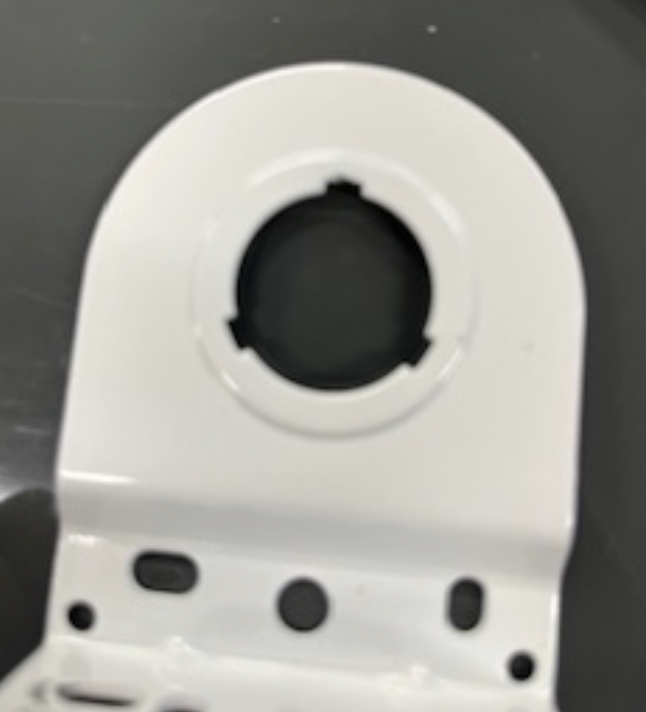

With the 3 notches on the inside of the Spring End Bracket

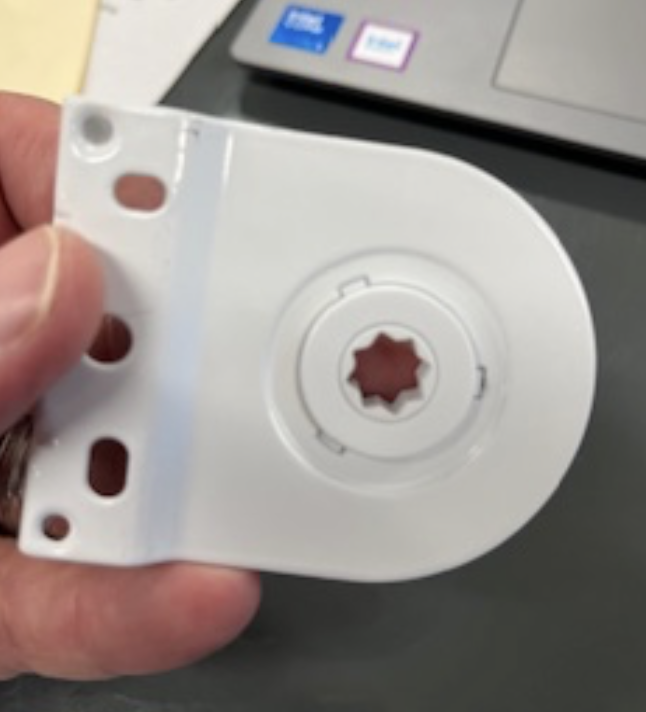

Spring End Bracket Outside View Showing Tabs and Notches Aligned

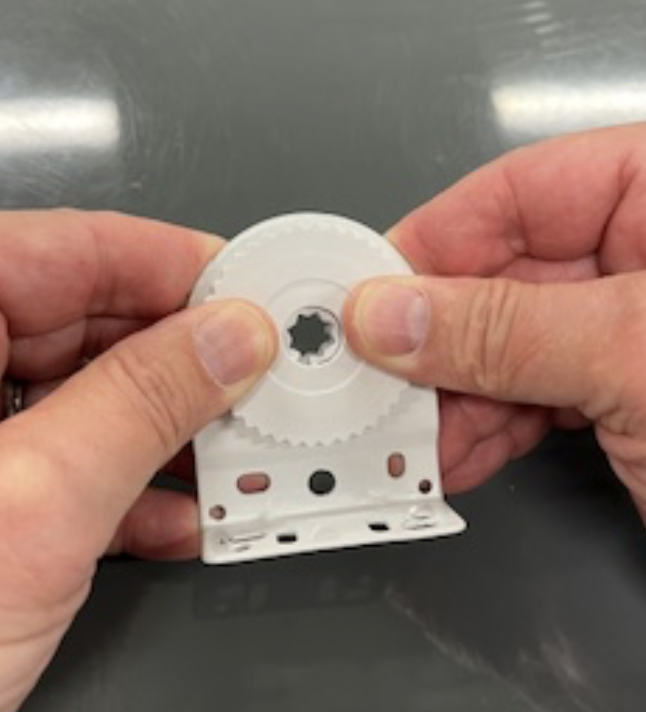

Snap Together

Done!
