Changing Out The Clutch Cord

Tools Required:  Phillips Head Screwdriver

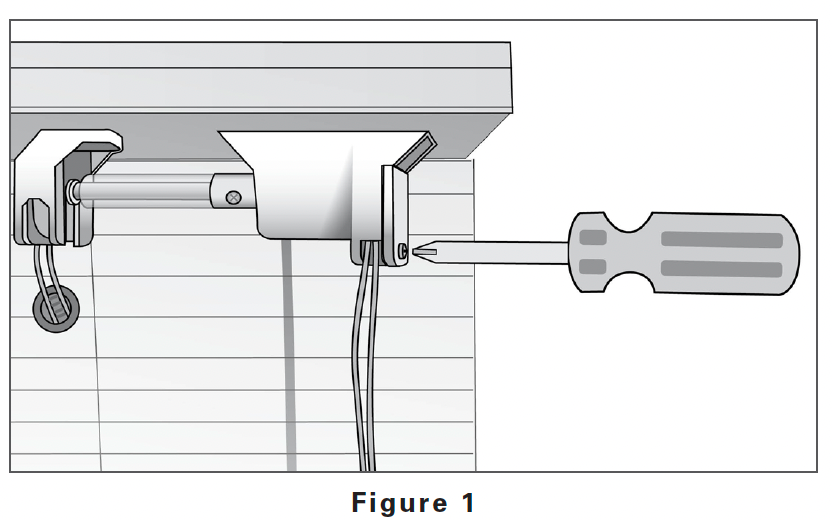

STEP 1: Using Philips head screw driver remove screw from end cap on control side of shade [Figure 1].

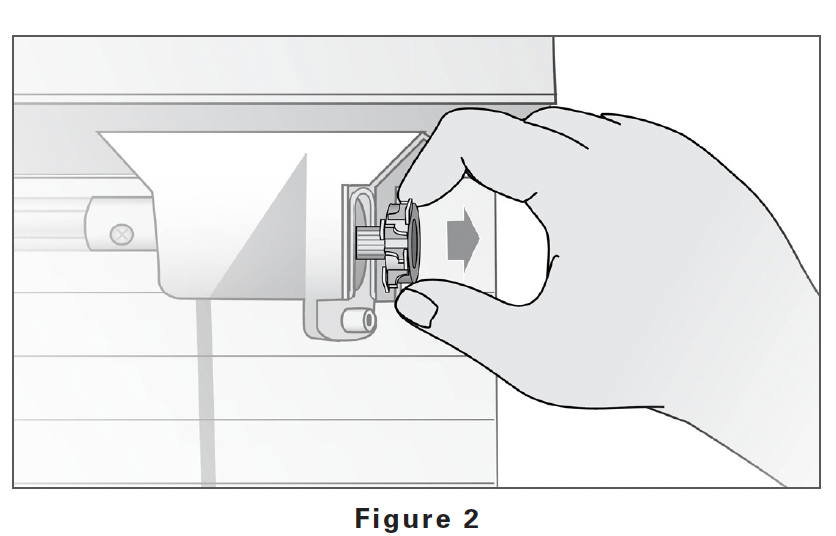

STEP 2:  Remove cord spool [Figure 2].

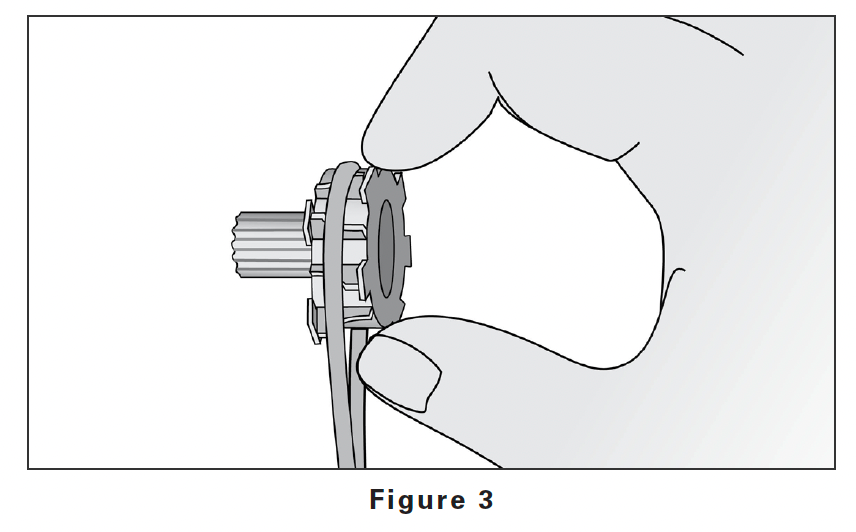

STEP 3: Remove old cord from spool and replace with new cord [Figure 3].

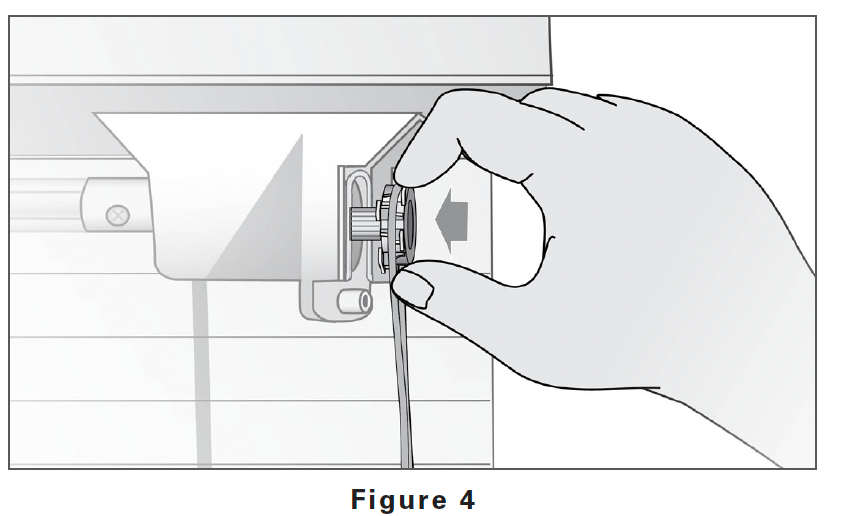

STEP 4: Slide spool with new cord back in place [Figure 4].

STEP 5:   With Phillips head screwdriver replace end cap [Figure 1].
