Box Valance Installation with the Absolute Sliding Panel

Roller Shade and Natural Roller Shade

Direct-to-Track Mount Installation

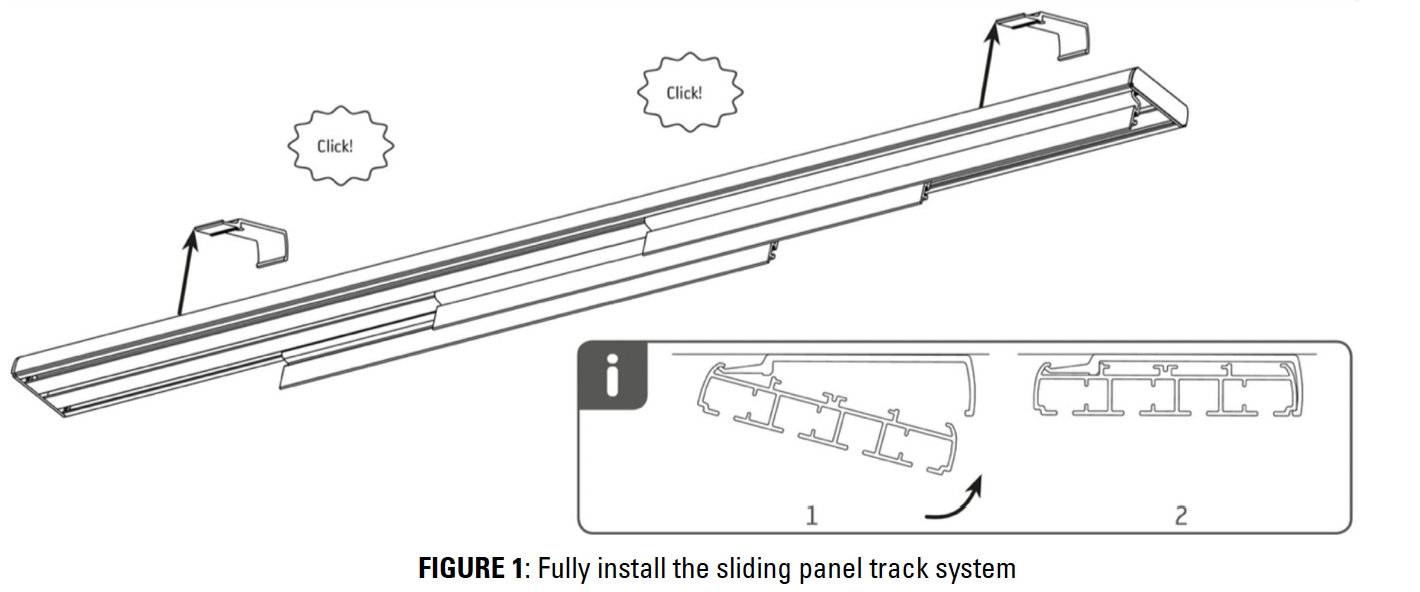

1. Start by fully installing your sliding panel track, fabric panels and wand. For direct mount, the box valance will install to the installed sliding panel track. (FIGURE 1)

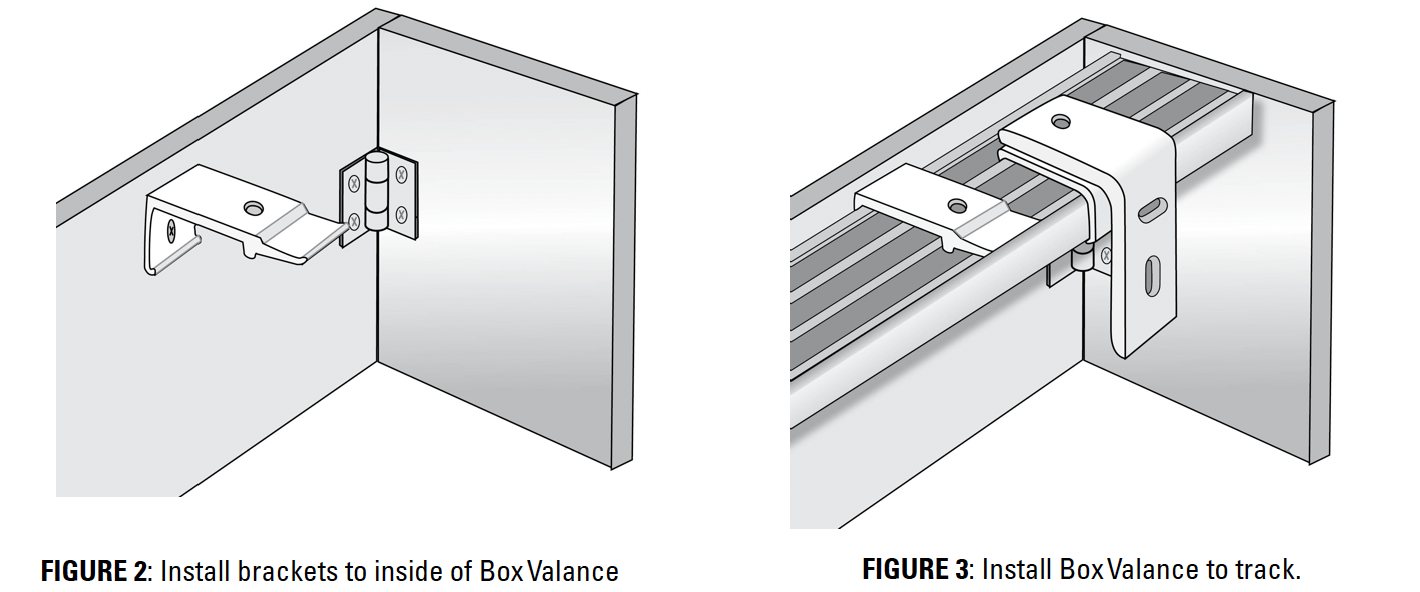

2. Attach the brackets to the back of the valance, about 4” in from each end, evenly spacing additional brackets along the middle span. (FIGURE 2)

3. Install the Box Valance by hooking the bracket into the back lip of the sliding panel track. Rotate the valance down – towards the front of the track – and the rounded front of the track will audibly “CLICK” into the bracket.

4. Test operation and enjoy your new Absolute Sliding Panel and Box Valance.
