Fabric Valance and Valance Board Installation for an Absolute Sliding Panel

Installing a valance board with Velcro on a Natural Shade Absolute Sliding Panel track system.

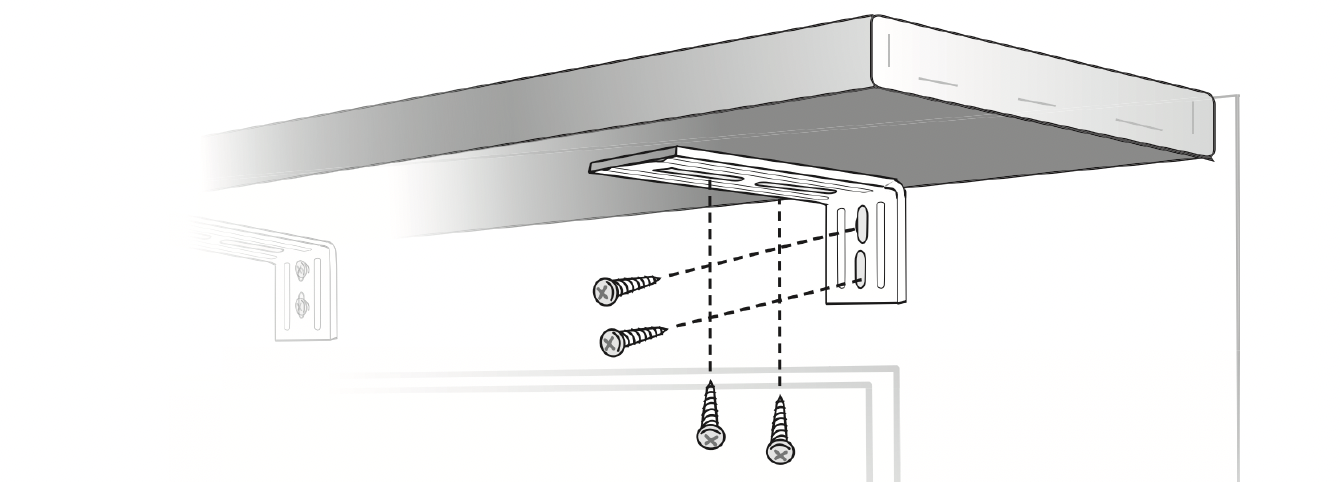

1. Install the L-Brackets to the Valance Board using the 3/4" provided screws – each bracket should measure between 4 “ - 6” in from either end of the valance board. Then, install the L-Brackets and Valance Board to the wall, using the 1 1/2” hex-head screws provided.

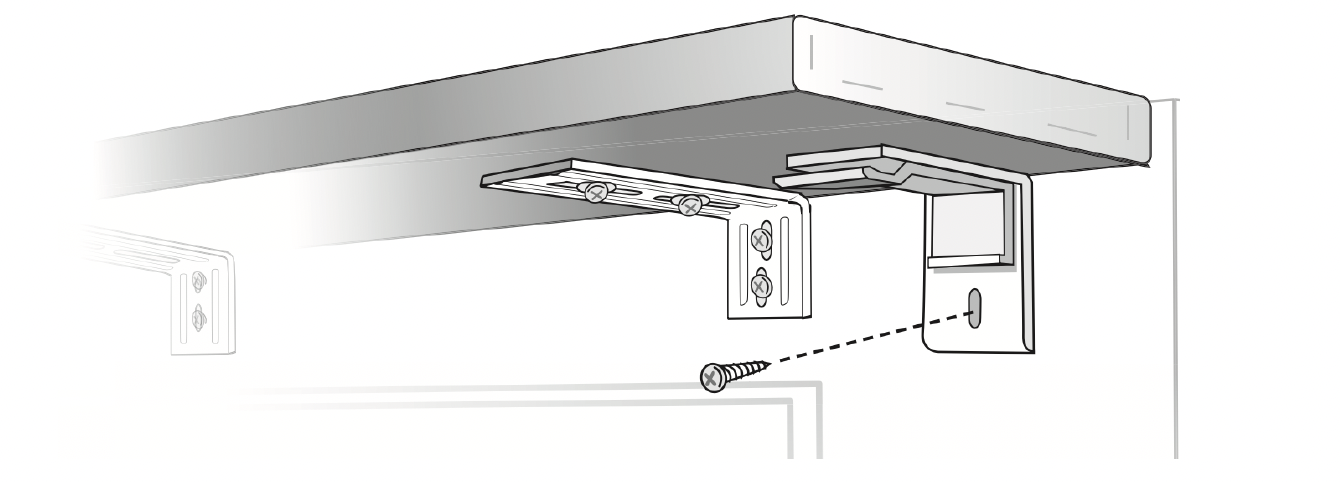

2.  Install Sliding Panel brackets to the wall, 3” in from the end of the Valance Board, using the 1 1/2" flat-head screws provided.

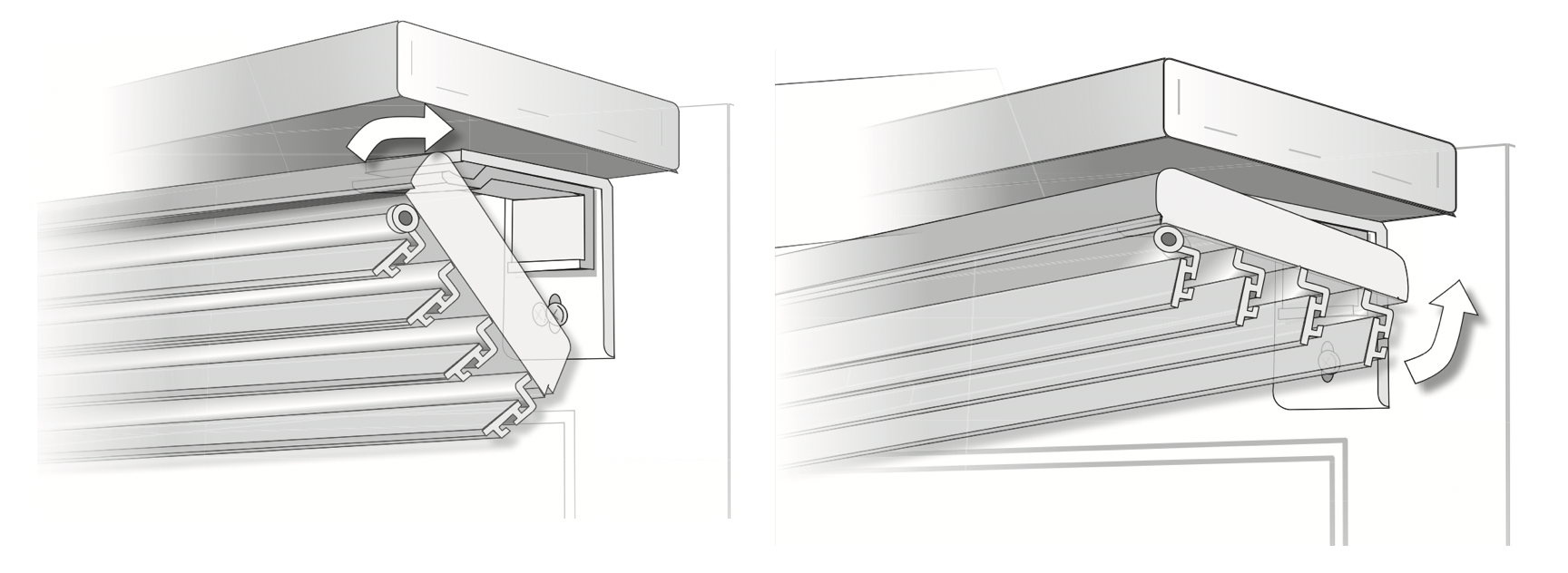

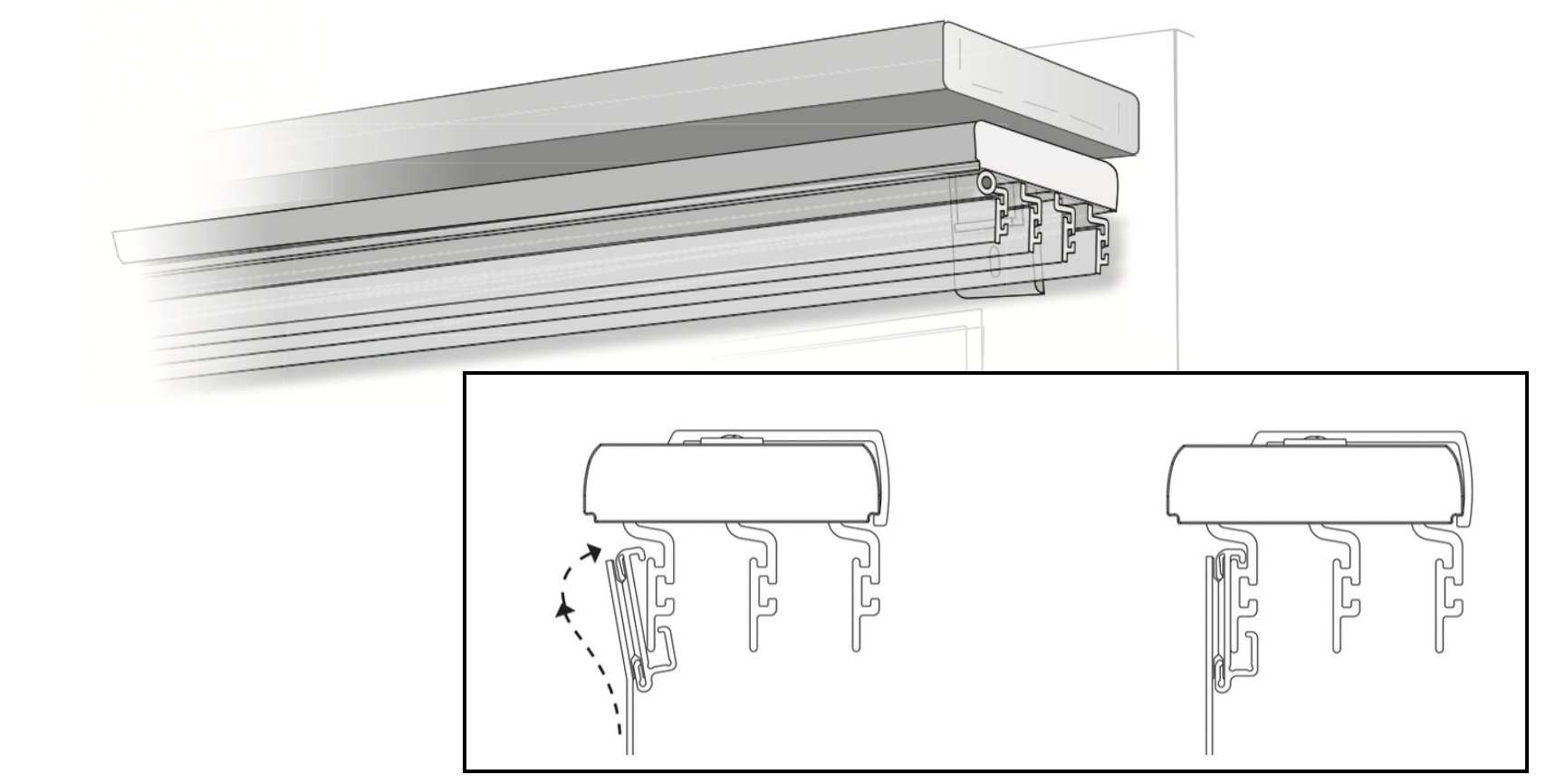

3. Install the Sliding Panel track to the brackets by following the standard installation instructions- hook the front of the track onto the lip of the bracket, and swivel the track upwards, towards the wall. You will hear and audible “CLICK” as the back of the track seats into the bracket.

4. Install the fabric panels to the track.

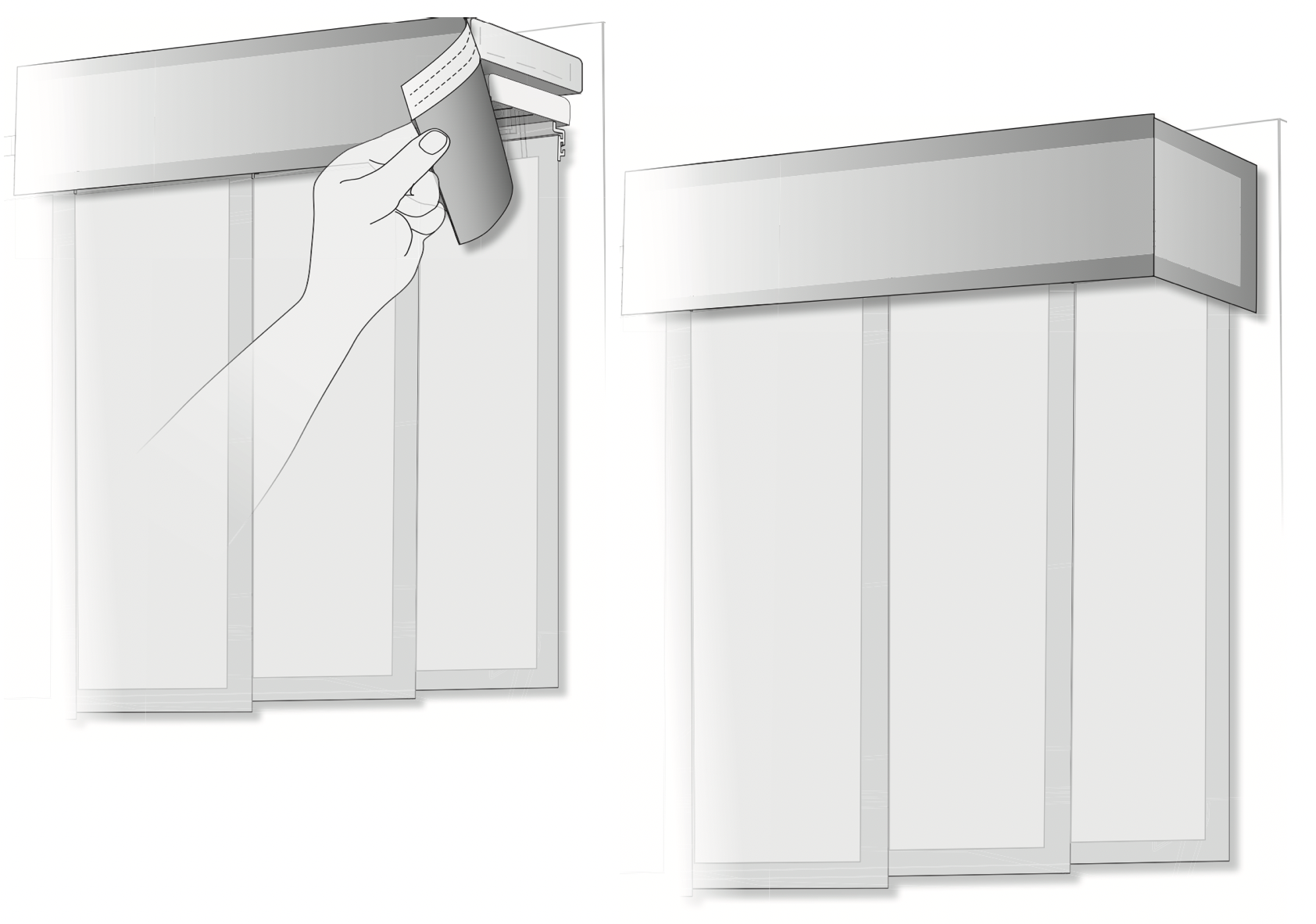

5. Install the valance to the velcro on the valance board.
