Absolute Sliding Panel

T-Stopper Replacement Instructions

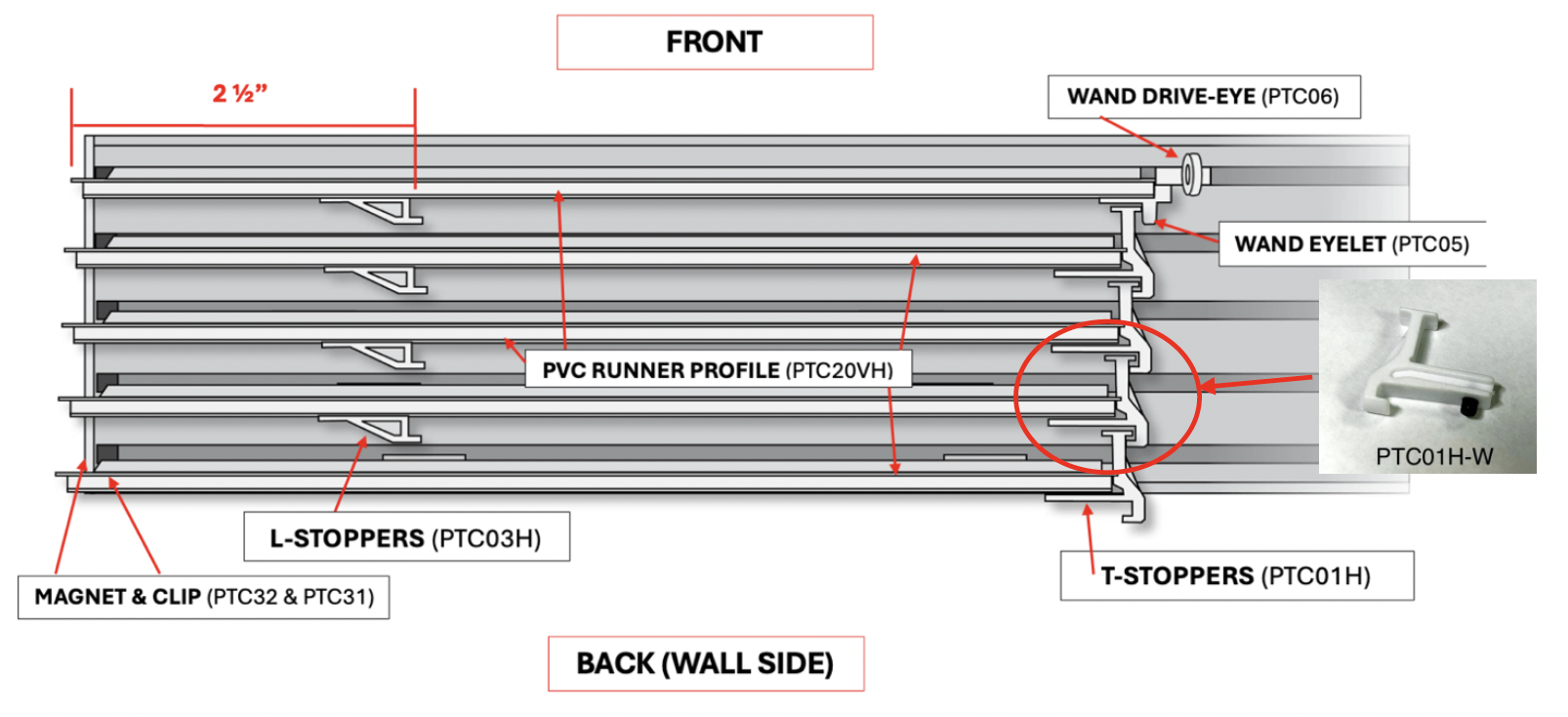

There are several small parts that enable your sliding panel to operate properly. Sometimes the pieces that collect and distribute the panels evenly in operation become loose or fall out of the gliders. Follow these simple instructions to replace or adjust these parts as needed.

1. Ensure you have access to the back or wall side of the sliding panel gliders. You can uninstall the track or set up to face the back of the product for ease of access.

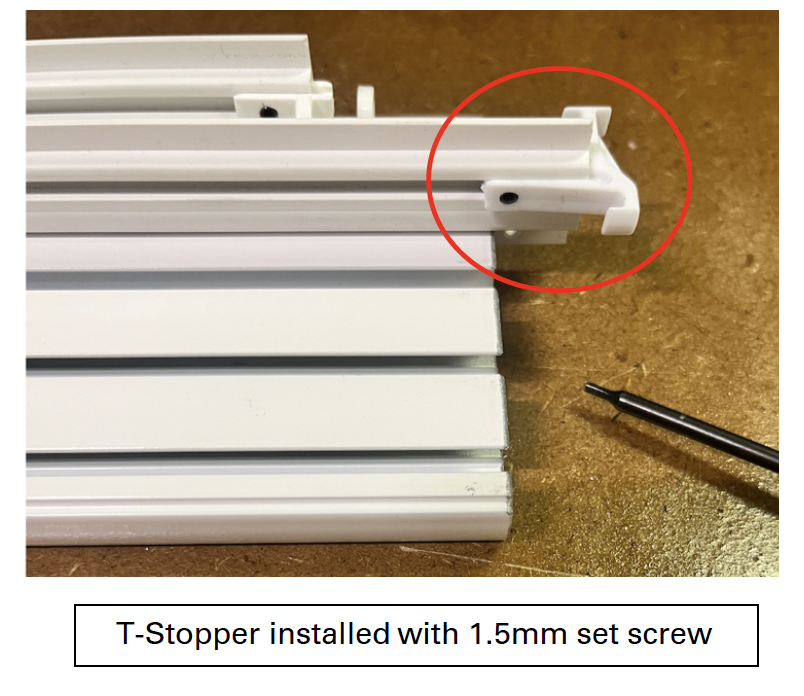

2. Each T-Stopper has a small set screw holding the piece in position in the groove on the glider.

This set screw can be loosened or tightened using a 1.5mm allen key. Do not over tighten – the set screw will puncture the front of the glider.

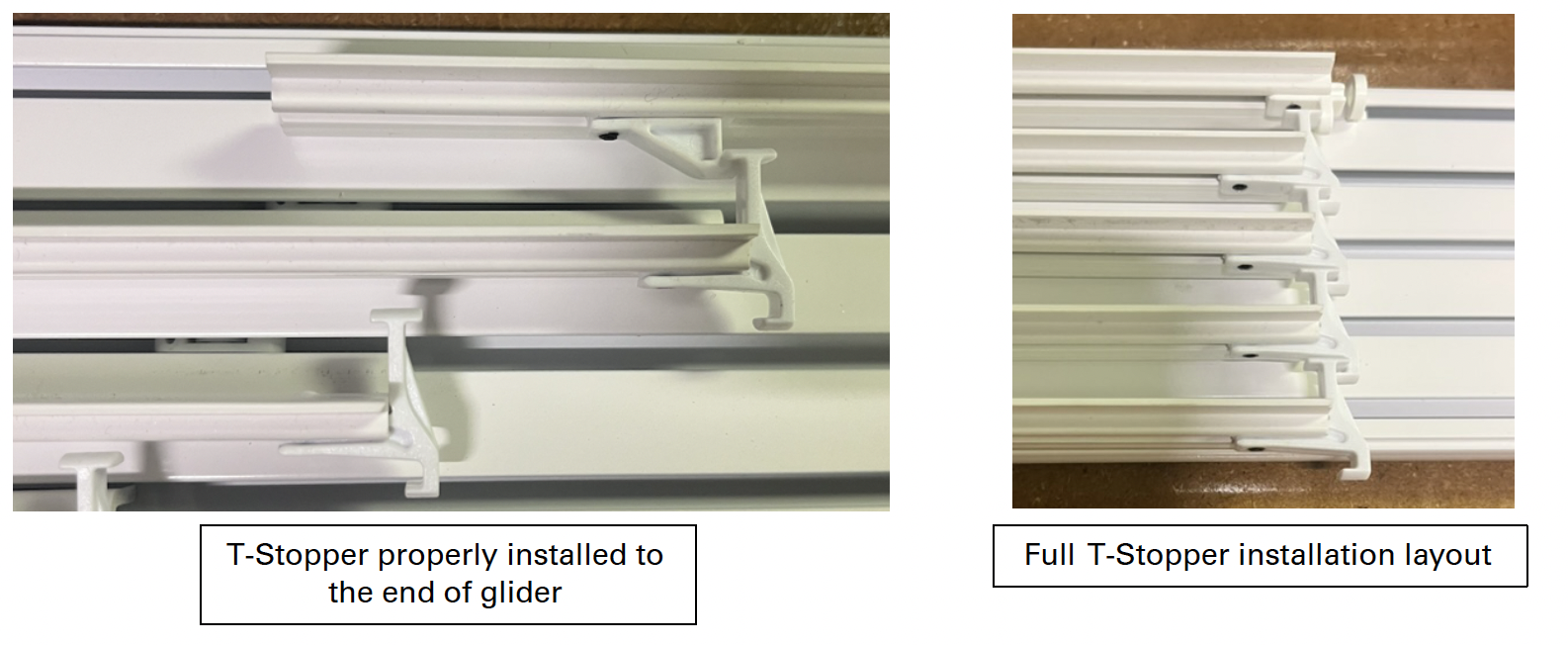

3. The T-Stopper fits tight to the end of the glider to collect the panels as you open or close the slider. This position is set and cannot be adjusted.

4. Once the T-Stopper is reinstalled, install the track and panels to check operation.

Last Updated: 1.03.25
