Absolute Sliding Panel Troubleshooting

Track End Cap Replacement Instructions

Sometimes the track end cap can become dislodged or damaged in shipping.

Follow these simple instructions to remove and replace your track end cap.

1. Ensure you have access to the top of the track. The track can stay installed as long as there is room to safely work on it from above.

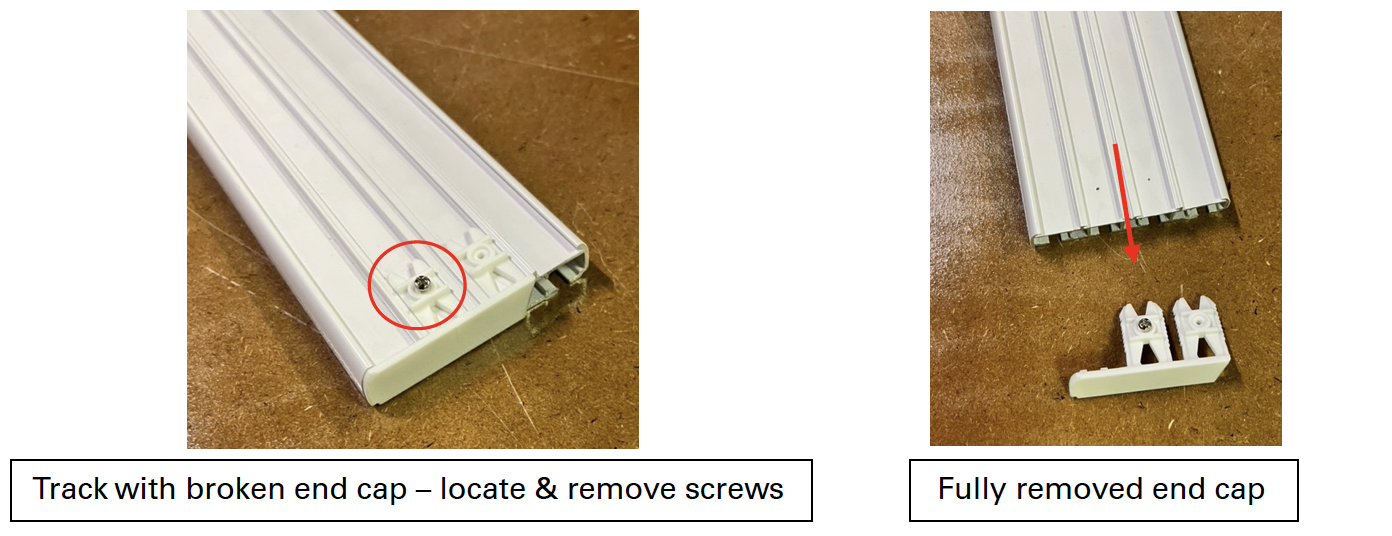

2. Locate and remove the end cap screws, then slide the end cap out the end of the track. Removal may be difficult due to the ridges on the cap.

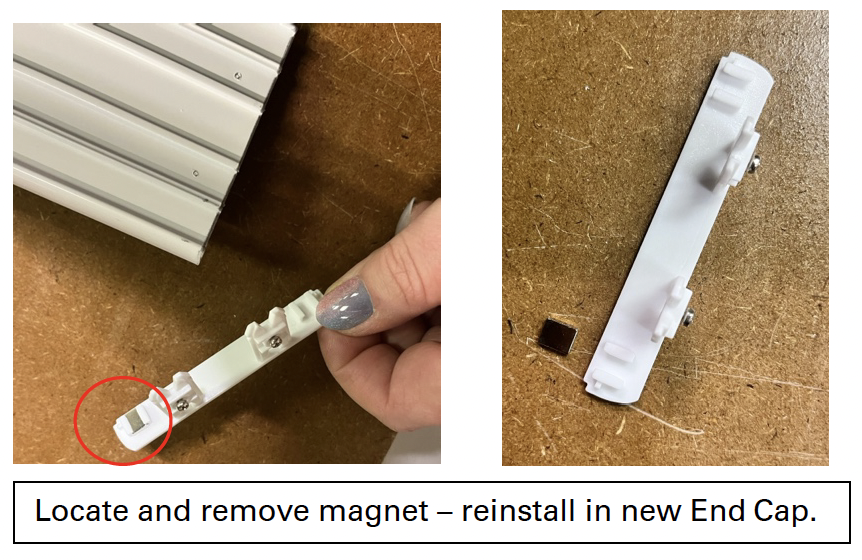

3. Make sure to check if there is a magnet installed in the end cap that has been removed. If so, transfer it to the new end cap.

4. Install new end cap and tighten screws.

Last Updated: 1.03.25
